Bhai, seedha bolta hu. Jab kisi badi building mein fire lag jaaye ya main power cut ho jaaye — to andhera ho jata hai. Ab logon ko nikalna hai building se. Stairs kahan hain, exit door kahan hai — kuch nahi dikh raha. Isi situation ke liye CBS hota hai.
CBS ek centralized battery backup system hai jo sirf emergency lights aur EXIT signs ko power deta hai. Ghar mein hum chhota inverter lagate hain — mall, hospital, high-rise building mein haazaron emergency lights hoti hain. Har light ke andar alag battery lagana aur maintain karna practically impossible hai. Isliye ek central location pe bada battery bank lagate hain jo poori building ko cover karta hai — yahi hai Central Battery System.
Maine Qatar University aur Sidra Hospital jaisi facilities mein CBS systems handle kiye hain — wahan is system ki importance directly dekhne ko milti hai. Jab bhi fire drill hoti hai, CBS hi sab kuch sambhalta hai.

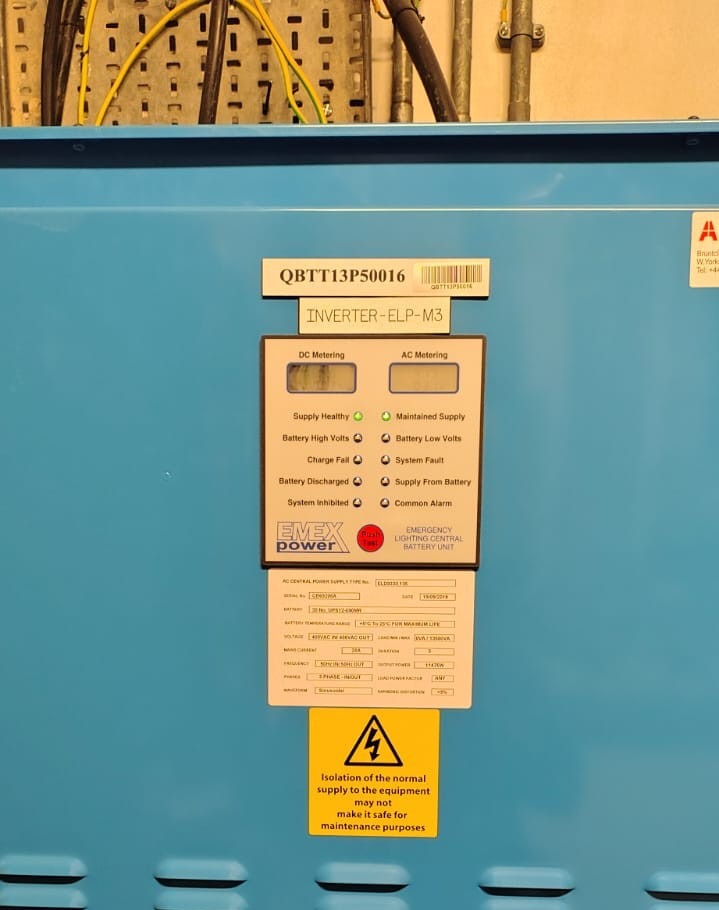

CBS Panel — Electrical Room Mein
Ye wahi panel hai jo pure building ki emergency lights ko control karta hai. Charger, battery bank, distribution — sab ek jagah. Gulf ki har commercial building mein ye mandatory hai — NFPA 101 Life Safety Code ke according.
CBS vs UPS — Fark Kya Hai
Ye Gulf interview ka sabse favorite question hai. 10 mein se 8 log yahan confuse hote hain. Ek baar seedha samajh lo — phir kabhi nahi bhoologe.
UPS ek continuous power supply hai — computers, servers, critical equipment ke liye. Uska kaam hai power failure ke time thoda backup dena taaki properly shutdown ho sake. Backup time 10-30 minutes. Output AC hai.
CBS sirf emergency lighting ke liye hai — exit routes, stairways, fire escape paths. Backup minimum 3 ghante. Output DC hai. Yahi fark hai — aur yahi interview mein bolna hai.
Feature
CBS
UPS
Purpose
Emergency Lighting Only
Continuous Power Supply
Backup Time
3 ghante (minimum)
10–30 minutes
Output
DC (110V ya 220V DC)
AC (230V AC)
Application
EXIT lights, stairway lights
Computers, servers, critical equipment
Required In
Har commercial building
Data centers, IT rooms
Standard
NFPA 101, BS 5266
IEC 62040
Interview Tip: Interviewer ne poocha “Building mein fire lag jaaye to emergency lights kaise jalegi?” — agar tune kaha “inverter se” ya “UPS se” to reject ho sakta hai. Sahi jawab hai: Central Battery System (CBS) se — FP cable ke through — DC supply milti hai.
FP Cable — CBS Ki Jaan
Ye question almost har Gulf interview mein aata hai. “CBS wiring mein kaun si cable use hoti hai aur kyun?” — agar ye nahi pata to CBS ka poora knowledge kaam nahi aata.
Normal PVC cable ko aag lagte hi 5 minute mein pighalna shuru ho jaata hai. Ab socho — fire lagi hai, main power cut hai, CBS battery pe chal rahi hai — lekin cables hi pighal gayi to emergency lights kaise jalegi? Isliye CBS mein Fire Performance Cable (FP Cable) use hoti hai jo 950°C tak bhi 2-3 ghante kaam karti rehti hai.
Property
FP Cable
Normal PVC Cable
Fire Resistance
950°C tak 2–3 ghante
5–10 minute mein pighal jaati hai
Color
Red (identification ke liye)
Grey ya black
Insulation
Mineral ya fire resistant compound
Standard PVC
Standard
BS 7846, IEC 60331
BS 6004
CBS mein use
Mandatory — main runs mein
Bilkul nahi
Real Incident — Sidra Hospital, Qatar: Electrical room mein minor fire hui thi. Normal PVC cables 5 minute mein kharab ho gayi. Lekin CBS ki FP cables 2 ghante tak kaam karti rahi — poore building ke exit routes illuminated rahe. Koi casualty nahi hui. Ye FP cable ki real value hai — theory nahi, real life safety hai.
CBS Panel Ke Andar Kya Hota Hai
Jab pehli baar CBS panel khola — andar bahut kuch dikh ta hai. Ghabrao mat. Har cheez ka ek kaam hai. Ek ek karke samjhata hu.
01
Charger / Rectifier
AC supply ko DC mein convert karta hai aur batteries ko charge karta rehta hai. Float charging mode mein batteries ko maintain karta hai — ne overcharge karo, na undercharge. Ye system ka power supply unit hai.
02
Battery Bank
Lead Acid ya Nickel Cadmium batteries. Ye actual backup deti hain. 110V DC system mein 54 cells (2V each) hote hain. 220V DC mein 108 cells. Inhi ki capacity se backup time determine hota hai — 3 ghante minimum, hospitals mein 4–6 ghante.
03
Distribution Panel
Alag alag zones ke liye separate circuits hote hain — MCBs ya fuses ke saath. Floor 1 ka alag circuit, stairways ka alag, parking ka alag. Ek zone mein fault aaye to baaki zone affected na ho.
04
Control & Monitoring Module
System ka brain. Battery status, charger status, loop faults, zone faults — sab yahan display hota hai. Fault code padh ke diagnose karna aana chahiye. Ye module hi batata hai kya problem hai — PPM mein isko rooz check karo.
05
Inverter Module (Where Applicable)
Jahan emergency lights AC pe chalti hain wahan DC ko wapas AC mein convert karta hai. Sab systems mein zaroori nahi — DC direct lights ke liye inverter nahi chahiye.
Maintained vs Non-Maintained Lights
Ye bhi interview mein poochha jaata hai. Simple hai — ek baar samjho.
Type
Kab Jalta Hai
Example
Power Use
Maintained
24 ghante ON rehta hai
EXIT signs, lobby emergency lights
Zyada — hamesha connected
Non-Maintained
Sirf power failure pe ON hota hai
Stairway emergency lights, corridor spots
Kam — sirf backup mode mein
Kaunsa Kahan Lagaayein? Critical exit routes par maintained lights use karo — andhera rehne se panic hota hai. Storage areas, back corridors mein non-maintained chalega. BS 5266 standard mein detailed requirements hain — Gulf mein ye standard follow hota hai.
CBS PPM — Maintenance Checklist
Agar maintenance position mein hoon to CBS ki PPM responsibility tere paas hogi. Ye cheeze regularly check karni hain — warna real emergency mein fail ho jaayega system.
Frequency
Kya Check Karna Hai
Daily
Panel display — koi fault alarm nahi hona chahiye. Charger float mode mein hona chahiye. Sab zones healthy dikhne chahiye.
Weekly
Battery electrolyte level (flooded type mein). Terminal connections tight hain ya nahi. Battery room temperature 25°C ke aaspaas. Ventilation proper hai — charging ke time hydrogen gas release hoti hai.
Monthly
Individual cell voltage record karo. Terminals clean karo. Panel ka visual inspection. DB PPM ki tarah documentation maintain karo.
Annually
Full discharge test — mandatory by Civil Defense / KAHRAMAA. Sab emergency lights physical check. FP cables visual inspection. Battery replacement assess karo.
Battery Terminals Par White Powder: Ye lead sulfate hai — corrosion ki wajah se banta hai. Baking soda aur paani ke solution se saaf karo. Phir petroleum jelly lagao. Terminals tight karo. Ignore karne se connection poor hoga aur backup time khatam ho jaayega.
Annual Discharge Test — Step by Step
Ye test Gulf mein Civil Defense aur KAHRAMAA ki requirement hai. Saal mein kam se kam ek baar karna zaroori hai. Is test se verify karte hain ki batteries apni rated capacity de rahi hain ya nahi — kyunki time ke saath battery capacity kam hoti jaati hai.
01
Pehle Permission Lo
Facility management, security aur all stakeholders ko inform karo. Test ke time building mein andhera hoga — pehle batao. PTW (Permit to Work) banao Gulf sites par — mandatory hai.
02
Main AC Supply OFF Karo
CBS ko AC supply se disconnect karo. Ab system battery pe chal raha hai. Timer start karo. Sab emergency lights on hone chahiye — agar koi zone fail ho raha hai to note karo.
03
Monitor Karo
Battery voltage har 30 minute pe record karo. Voltage drop rate note karo. Agar voltage bahut jaldi drop ho raha hai to battery weak hai — replacement needed. 3 ghante (ya specified time) complete hone chahiye.
04
Restore Karo aur Document Karo
Test complete hone ke baad AC supply wapas ON karo. Charger automatic charge karna shuru kar dega. Test report banao — start time, end time, voltage readings, koi fault. Ye document Civil Defense audit mein dikhana padta hai.
Ye Mat Karo: Test ke time kisi bhi floor pe kaam mat karne do — fire emergency simulate ho rahi hai. Building ke andar sab ko pata hona chahiye. Qatar University mein humne test ke din pehle notice board par announcement lagai thi.
UPS continuous power supply ke liye hai — computers aur servers ko 10–30 minute backup deta hai, AC output. CBS sirf emergency lighting ke liye hai — minimum 3 ghante backup, DC output. Dono alag purpose serve karte hain — ek dusre ki jagah nahi le sakte.
Fire Performance Cable (FP Cable) use hoti hai. Normal PVC cable aag mein 5–10 minute mein pighal jaati hai. FP cable 950°C tak 2–3 ghante kaam karti rehti hai. Fire ke time hi emergency lights ki sabse zyada zaroorat hoti hai — isliye FP cable mandatory hai. Red color mein hoti hai identification ke liye.
Maintained light 24 ghante ON rehti hai — EXIT signs aur critical corridors mein use hoti hai. Non-maintained light sirf power failure pe ON hoti hai — stairways aur back areas mein. Maintained zyada power consume karti hai lekin panic se bachati hai — isliye exit routes par hamesha maintained use karo.
Gulf mein Civil Defense requirement ke according commercial buildings mein minimum 3 ghante mandatory hai. Hospitals aur high-rise towers mein 4–6 ghante ka backup hota hai. Annual discharge test se verify karte hain ki batteries actual mein ye backup de rahi hain ya nahi.
Pehle display screen dekho — specific fault message padhna. Common alarms: Battery Low (charge level kam hai), Charger Fault (AC supply ya charger mein problem), Loop Open (kisi zone ki cable fault), Earth Fault (earth leakage). Message ke according troubleshoot karo — panel khud batata hai kya problem hai.
Haan — alag alag purposes ke liye. CBS sirf emergency lighting handle karta hai. Building ke baaki loads jaise lifts, pumps, AC, medical equipment ke liye generator ya alternate power source chahiye. CBS aur generator dono complementary systems hain — ek dusre ki jagah nahi le sakte.
