Transformer Kya Hai? — Seedha Samjho
Transformer kya hai ye samjhna bahut simple hai. Bas sahi tarike se samjhna zaroori hai.
Transformer ek electrical machine hai jo AC voltage ko badhata ya ghatata hai. Is process me frequency change nahi hoti.
Example ke liye, agar aapke paas 11,000V (11kV) ki supply hai aur ghar ke liye 230V chahiye, to transformer 11,000V ko 230V me convert karega.
Isi tarah, agar power station se 440V bani hai aur use door tak bhejna hai, to transformer ise 132,000V (132kV) me badhayega. Isse transmission loss kam hota hai.
Ek baat yaad rakhna — transformer sirf AC pe kaam karta hai, DC pe nahi. Agar DC supply doge, to winding jal sakti hai aur transformer damage ho sakta hai.

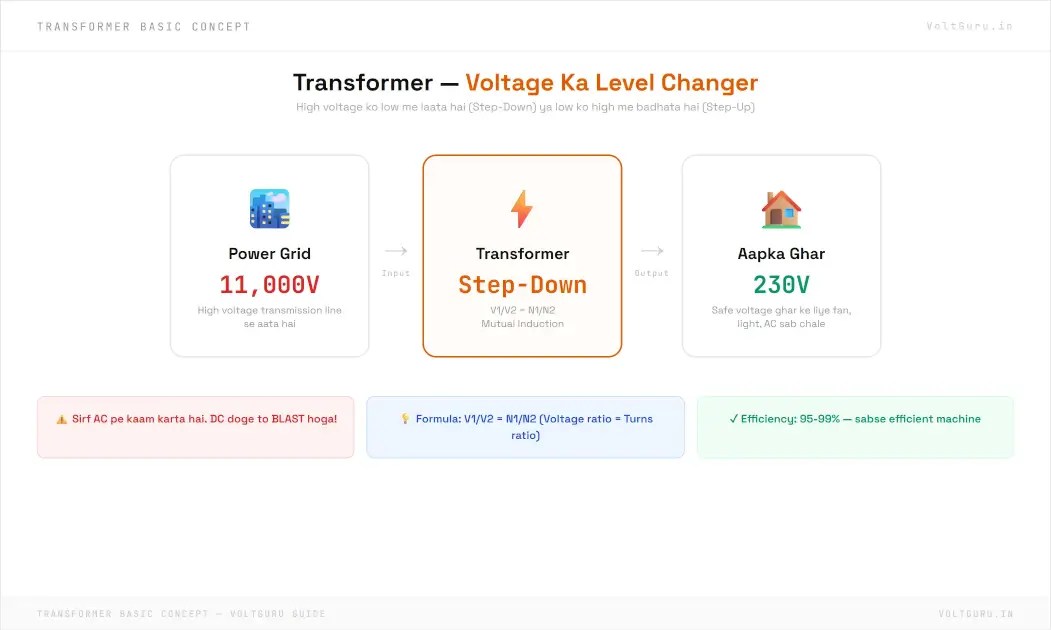

Simple bhasha me — transformer voltage ka level changer hai.
11kV aata hai, 230V nikalta hai. Ya 230V aata hai, 11kV nikalta hai. Bas itna hai.
Lekin HOW ye hota hai — ye samjhna zaroori hai. Chalo working principle samjhte hain.
Transformer Kaise Kaam Karta Hai? — Chai Se Samjho
Ab transformer kya hai ye samajh gaye. Ab samjho ki ye kaam kaise karta hai.
Mutual Induction Simple Language Me
Technical language me ise Mutual Induction ya Faraday’s Law of Electromagnetic Induction bolte hain.
Lekin main aapko simple example se samjhaunga. Sochiye aapke paas ek iron rod hai.
Ek taraf aapne ek coil (taar ka gola) lapeta. Ise Primary Winding bolte hain.
Doosri taraf doosra coil lapeta. Ise Secondary Winding bolte hain.
Ab jab aap primary winding me AC current dete hain, to wo current iron core me changing magnetic field create karta hai.
Kyunki AC supply hoti hai, isliye magnetic field baar-baar change hota hai. India me supply frequency normally 50Hz hoti hai.
Ye changing magnetic field secondary winding me voltage induce karta hai. Dono coils ke beech direct wire connection nahi hota.
Isi process ko mutual induction bolte hain.
Matlab do coils hain, beech me magnetic core hai. Ek winding ko AC supply di aur doosri winding me voltage induce ho gaya.
Turns Ratio Se Voltage Kaise Decide Hota Hai?
Ab voltage kitna aayega ye depend karta hai turns ratio pe.
Primary me 1000 turns hain aur secondary me 100 turns to ideal transformer relation ke according voltage approximately 10 guna kam hoga.
Formula: V1/V2 = N1/N2
V1 / V2 = N1 / N2 = I2 / I1
V1 = Primary Voltage
V2 = Secondary Voltage
N1 = Primary Turns
N2 = Secondary Turns
I1 = Primary Current
I2 = Secondary Current
Example: Primary = 11,000V
Primary turns = 1000
Secondary turns = 100
V2 = (11,000 × 100) / 1000
V2 = 1,100V
Ideal transformer ke approximation me voltage kam hone par current badh sakta hai, jabki power losses ko ignore karne par approximately conserve hoti hai.
Step-Up vs Step-Down Transformer — Kya Fark Hai?
Transformer kya hai samajhne ke baad sabse pehla sawaal aata hai — step-up aur step-down me kya fark hai?
Bahut simple hai. Step-Up Transformer voltage ko badhata hai. Jaise 440V ko 11,000V me change karna.
Isme secondary winding me primary se zyada turns hote hain.
Power system me high voltage par transmission karne se same power ke liye current lower hota hai, jisse suitable transmission arrangement me I²R line losses reduce karne me help milti hai.
Step-Down Transformer voltage ko ghatata hai. Jaise 11,000V ko 230V/415V me laana.
Isme secondary winding me turns kam hote hain.
Aapke mohalle ke pole pe jo transformer laga hota hai, wo usually distribution step-down transformer hota hai.
Step-Up Transformer
Step-Up: Voltage badhao. Secondary me zyada turns.
Step-Down Transformer
Step-Down: Voltage ghatao. Secondary me kam turns.
Dono ka basic operating principle same hai — difference turns ratio aur intended voltage/current rating ka hota hai.
| Parameter | Step-Up Transformer | Step-Down Transformer |
|---|---|---|
| Kaam | Voltage badhata hai | Voltage ghatata hai |
| Turns | Secondary > Primary | Secondary < Primary |
| Current | Secondary me comparatively kam | Secondary me comparatively zyada |
| Typical Use | Transmission / grid applications | Distribution applications |
| Example | 440V → 132kV | 11kV → 230/415V |
Transformer Ke Parts — Andar Kya Hota Hai?
Transformer ke andar kya kya hota hai ye jaanna bahut zaroori hai. Especially agar aap maintenance electrician hain ya Gulf interview ki taiyaari kar rahe hain.
Main Transformer Parts
Ek power ya distribution transformer ke main parts ye hote hain.
Core: Ye silicon steel ki laminated sheets se banta hai. Isi core me magnetic flux establish hota hai.
Core laminated isliye hota hai kyunki laminations eddy current losses ko reduce karne me help karti hain.
Primary Winding: Ye copper ya aluminium conductors ki winding hoti hai. Input supply appropriate winding par connect hoti hai.
Secondary Winding: Is winding se required output voltage available hota hai.
Transformer Oil: Oil-filled transformers me insulating liquid cooling aur insulation dono me important role play karta hai.
Tank: Ye steel enclosure hota hai. Iske andar core, winding aur insulating liquid hota hai.
Bushings: Bushings insulated passage provide karti hain jisse conductors transformer tank ke andar se bahar ja sakte hain.
Conservator: Oil-filled transformer me conservator oil ke thermal expansion aur contraction ko accommodate karne ke liye use hota hai.
Breather: Conservator-type transformers me breather moisture ko transformer ke oil system me enter hone se reduce karne me help karta hai.
Buchholz Relay: Conservator-type oil-filled transformers me Buchholz relay internal fault ke result me generated gas ya abnormal oil movement ko detect karne ke liye protection arrangement ka part ho sakta hai.
Interview Ke Liye Important Parts
Interview preparation ke liye Core, Winding, Oil, Bushing aur Buchholz Relay ko zaroor samjho.
Transformer Ke Types — Power, Distribution, CT, PT, Auto
Transformer sirf ek type ka nahi hota. Iske bahut se types hote hain, aur har type ka kaam alag hota hai.
Power Transformer Aur Distribution Transformer
Sabse pehle jaano Power Transformer. Ye generally large power-system applications me use hote hain.
Power transformers generating stations aur grid substations jaise applications me use kiye ja sakte hain.
Fir aata hai Distribution Transformer. Ye distribution network me consumers ke liye voltage ko suitable lower level par transform karta hai.
Example ke taur par 11kV distribution network se low-voltage 230/415V supply system provide kiya ja sakta hai, transformer configuration ke according.
CT, PT, Auto Aur Isolation Transformer
CT (Current Transformer): Ye high current ko proportional lower current me transform karta hai measurement aur protection applications ke liye.
Example: 500/5A CT. Primary current 500A hone par rated secondary current 5A hota hai.
PT / VT (Potential Transformer / Voltage Transformer): Ye high voltage ko proportional lower voltage me transform karta hai measurement aur protection ke liye.
Example: 11kV/110V.
Auto Transformer: Isme electrically connected common winding hoti hai aur taps ke through different voltage ratios obtain kiye ja sakte hain.
Isolation Transformer: Isme generally 1:1 ratio use kiya ja sakta hai. Primary aur secondary ke beech galvanic isolation provide hoti hai.
| Type | Kaam Kya Hai | Kahan Lagta Hai | Example |
|---|---|---|---|
| Power Transformer | Power-system voltage transformation | Grid / power plant | HV systems |
| Distribution Transformer | Distribution voltage reduce karna | Distribution network | 11kV → 230/415V |
| CT | Current measurement / protection | Panels / switchgear | 500/5A |
| PT / VT | Voltage measurement / protection | Panels / switchgear | 11kV/110V |
| Auto Transformer | Voltage adjustment | Stabilizer / applications | Tap based |
| Isolation Transformer | Electrical isolation | Sensitive equipment | 1:1 |
Transformer Oil Kyun Lagta Hai?
Transformer me oil lagana mandatory har transformer ke liye nahi hota, lekin oil-filled transformers me insulating liquid bahut important hota hai.
Transformer oil ke major functions hain: cooling aur insulation.
Jab transformer load pe chalta hai, to winding aur core me losses ki wajah se heat generate hoti hai.
Oil winding aur core se heat transfer karne me help karta hai, jo cooling system/radiators ke through environment me dissipate hoti hai.
Transformer oil electrical insulation me bhi important role play karta hai.
Oil ke types: Mineral oil, silicone-based insulating liquids aur ester-based insulating liquids applications ke according use ho sakte hain.
Oil test: BDV (Breakdown Voltage) test insulating liquid ki dielectric strength assess karne ke liye commonly use hota hai.
Silica gel breather: Breather moisture ingress ko control karne me help karta hai. Silica gel ki condition manufacturer/site procedure ke according monitor aur regenerate/replace ki jaati hai.
07 — Safety AlertTransformer Blast Kyun Hota Hai?
Bhai ye section dhyan se padhna.
Transformer kya hai ye samajhna zaroori hai. Lekin transformer failure ke reasons samajhna jaan bachane wali knowledge ho sakti hai.
Transformer failure/fire ke multiple causes ho sakte hain. Inme overloading, insulation deterioration, oil problems, lightning/surge, internal faults aur inadequate maintenance jaise factors shamil ho sakte hain.
Transformer Failure Ke Common Reasons
1. Overloading: Transformer ki rated capacity se continuously zyada load chalane se temperature rise aur insulation ageing badh sakti hai.
2. Oil level / oil condition problem: Oil-filled transformer me insufficient ya degraded insulating liquid cooling aur insulation performance ko affect kar sakta hai.
3. Lightning / Surge: Lightning aur switching surges insulation system par severe electrical stress create kar sakte hain.
Moisture, Short Circuit Aur Maintenance Problems
4. Oil me moisture: Moisture insulating liquid ki dielectric performance ko reduce kar sakta hai.
5. Short circuit: External ya internal fault se very high fault current aur mechanical/thermal stress develop ho sakta hai.
6. Poor maintenance: Oil condition, bushings, connections, protection devices, temperature aur other parameters ki inadequate inspection failure risk badha sakti hai.
Transformer Testing — Kaise Check Karte Hain?
Transformer ki testing maintenance me bahut important hai. Proper testing se developing faults ko identify karne me help mil sakti hai.
Insulation Resistance Test (Megger): Appropriate test voltage use karke winding insulation ki resistance measure ki jaati hai.
Primary-secondary, primary-earth aur secondary-earth insulation measurements application aur test procedure ke according kiye ja sakte hain.
Turns Ratio Test: TTR (Transformer Turns Ratio) meter se transformer ka actual turns ratio verify kiya jaata hai aur nameplate value se compare kiya jaata hai.
Oil BDV Test: Transformer oil ki dielectric breakdown strength test ki jaati hai. Acceptance criteria applicable standard, transformer manufacturer aur site specification ke according check karni chahiye.
Agar result acceptable limit se low aaye, to oil filtration, treatment ya replacement ka decision approved maintenance procedure ke according liya jaata hai.
Winding Resistance Test: Winding ka DC resistance measure karke phases/taps ke readings ko compare kiya ja sakta hai.
Temperature / Load Monitoring: Transformer ke load, winding/oil temperature aur other operating parameters ko manufacturer limits ke against monitor kiya jaata hai.
Gulf me transformer ka PPM (Preventive Maintenance) scheduled maintenance program ka part ho sakta hai.
Proper maintenance transformer ki reliability aur service life improve karne me important role play karti hai.
09 — Gulf InterviewGulf Interview Me Transformer Ke 5 Sawaal
Transformer fundamentals Gulf electrical maintenance interviews me important topic hain.
Jawab: Transformer ek static electrical device hai jo electromagnetic induction ke principle par AC voltage ko ek level se doosre level par transform karta hai. Basic relation: V1/V2 = N1/N2.
Jawab: Step-up transformer voltage increase karta hai, jabki step-down transformer voltage decrease karta hai. Turns ratio dono ke beech main difference hai.
Jawab: Transformer action ke liye changing magnetic flux required hota hai. Steady DC normal transformer me continuous changing flux provide nahi karta. Saath hi winding me excessive current aur overheating ka risk ho sakta hai.
Jawab: CT current measurement/protection ke liye aur PT/VT voltage measurement/protection ke liye use hota hai.
Example: CT = 500/5A, PT = 11kV/110V.
Jawab: Oil-filled transformer me insulating liquid cooling aur electrical insulation provide karne me important role play karta hai. Iski condition ko appropriate testing se monitor kiya jaata hai.
Answer: “Energized CT ka secondary open-circuit nahi karna chahiye. Is condition me dangerous high voltage develop ho sakta hai. Isliye approved CT shorting arrangement aur proper safety procedure follow karna chahiye.”
Final Revision Before Interview
Bhai umeed hai ab transformer kya hai ye poora clear ho gaya hoga.
Is post me aapne working principle, step-up/step-down, transformer parts, oil, failure reasons, testing aur interview questions samjhe.
Ye ek electrician ki basic aur important knowledge hai.
Agar transformer ka concept clear nahi hai, to site pe practical kaam aur technical interview dono me problem aa sakti hai.
Is post ko bookmark karo aur interview se pehle ek baar zaroor padho.
Aur agar MCB MCCB ka fark , Star Delta wiring , Electrical BOQ , ya VFD maintenance bhi nahi aata, to wo bhi padh lo.
Sab FREE hai VoltGuru pe.
Frequently Asked Questions
Transformer ke common questions — basic se practical aur interview level tak.
Transformer DC pe kyun nahi chalta?
DC applied hone par winding me excessive current, overheating aur winding damage ka risk bhi ho sakta hai.
CT ka secondary open karne se kya hoga?
Isse insulation damage, arcing aur serious electrical hazard ho sakta hai.
Isliye energized CT secondary ko approved shorting arrangement ke bina open nahi karna chahiye.
Transformer ki efficiency kitni hoti hai?
Main losses me core loss aur copper loss important hote hain.
Transformer me humming sound kyun aati hai?
AC magnetic flux ke saath core ki laminations microscopic level par expand aur contract karti hain, jisse vibration aur humming sound produce ho sakti hai.
Agar sound suddenly bahut loud ho, unusual vibration ho, crackling sound aaye ya other abnormal symptoms dikhein, to inspection zaroori hai.
Ghar me jo stabilizer hai wo bhi transformer hai?
Auto-transformer me common winding aur taps hote hain. Control system suitable tap select karke output voltage ko required range ke paas maintain karne me help kar sakta hai.
Transformer oil ki BDV test kaise hoti hai?
Controlled test conditions me electrodes ke across voltage gradually increase kiya jaata hai. Jis voltage par electrical breakdown occur hota hai, us value ko breakdown voltage ke roop me record kiya jaata hai.
Acceptable BDV value applicable standard, manufacturer specification aur site procedure ke according verify karni chahiye.
Transformer Concept Clear?
Working principle se lekar parts, testing, safety aur Gulf interview tak — ab transformer ka complete basic roadmap revise karo.
