Star Delta wiring ek bahut zaroori electrical skill hai jo har professional electrician ko aani chahiye. Badi motors ko direct-on-line (DOL) start karne par jo starting current aati hai wo full load current ki 6–7 guna hoti hai — jo equipment aur supply system dono ke liye nuqsandeh hai. Star Delta starter is problem ka sabse practical aur cost-effective solution hai. Mera naam Arif hai aur main aapko ek aisa complete guide dunga jo maine 12 saalon ke field experience se seekha hai — Mumbai ke industrial projects se lekar Qatar University aur Sidra Hospital jaise critical facilities tak — har jagah star delta starters ka samna hua hai. 3 phase motor me 6 terminals hote hain aur inhe sahi tarike se connect karna hi star delta wiring ki asli skill hai.
- Star Delta Starter Kya Hai Aur Kyon Zaroori Hai
- Motor Terminal Box Ko Samjho
- Star Connection — Starting Phase
- Delta Connection — Running Phase
- Control Circuit Wiring — 3 Contactors
- Star vs Delta — Complete Comparison
- 5 Aam Galtiyan Jo Nahi Karni Chahiye
- Troubleshooting Guide
- Safety Tips — Inhe Zaroor Follow Karo
- Frequently Asked Questions
Star Delta Starter Kya Hai Aur Kyon Zaroori Hai
Jab koi badi motor directly start hoti hai to use full voltage (415V) ek jhatke mein milti hai. Isse starting current bahut zyada ho jaati hai jo supply system par heavy load dalti hai aur motor ko mechanical shock deti hai. Star Delta starter is problem ko do stages mein solve karta hai — pehle star mein reduced voltage pe start, phir delta mein full power pe run. Yahi wajah hai ki Gulf ke har electrical interview mein star delta zaroori topic hai.
Real Experience — Qatar University Chiller Plant
Qatar University ke chiller plant mein 75kW pumps the. DOL start par har baar main panel ka incoming breaker dip karta tha aur building ki lights flicker karti thin. Star delta starter install karne ke baad yeh problem poori tarah khatam ho gayi. Starting current 6 guna se ghatkhar 2 guna reh gayi. Ek proper starter ne poori building ki power quality bachaayi.
| Application | Motor Rating | Why Star Delta |
|---|---|---|
| Water Pumps | 7.5 kW aur upar | Smooth starting, supply protection |
| Air Compressors | 5.5 kW aur upar | Unloaded start possible |
| HVAC Fans | 11 kW aur upar | Belt aur coupling protection |
| Conveyor Systems | 15 kW aur upar | Gradual acceleration |
| Industrial Mixers | 11 kW aur upar | Mechanical shock prevention |

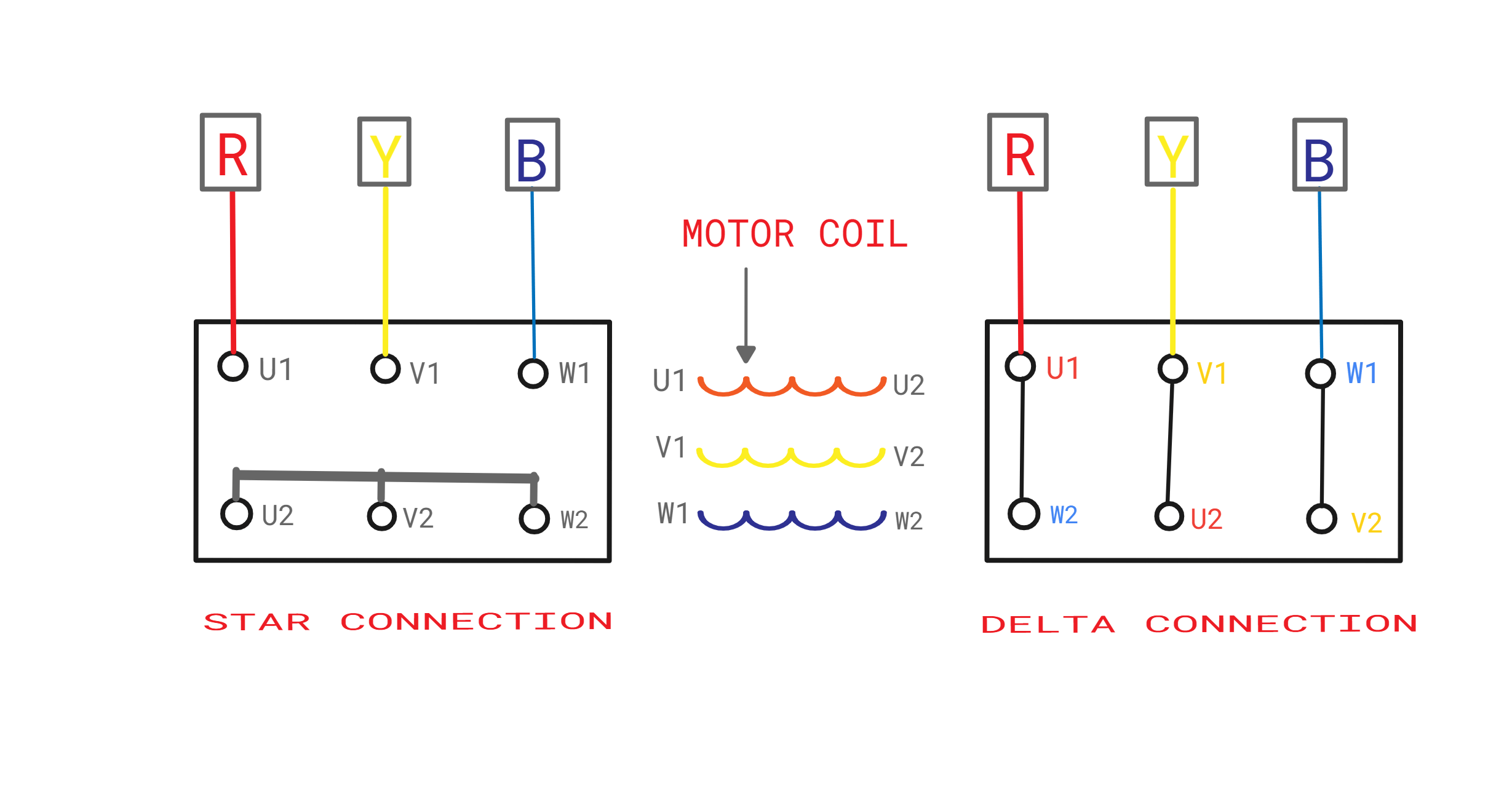

Motor Terminal Box Ko Samjho
Star delta wiring seekhne se pehle motor ke terminal box ko samajhna bahut zaroori hai. Har 3 phase motor mein 6 terminals hote hain jo teen coils ke starting aur ending points hain. Electrical drawings padhna jaante ho to terminal diagram easily samajh aaega — warna pehle wo guide padh lo.
| Terminal | Coil | Position |
|---|---|---|
| U1 | Coil 1 | Starting point — Phase L1 yahan connect hota hai |
| U2 | Coil 1 | Ending point — Star mein short kiya jaata hai |
| V1 | Coil 2 | Starting point — Phase L2 yahan connect hota hai |
| V2 | Coil 2 | Ending point — Star mein short kiya jaata hai |
| W1 | Coil 3 | Starting point — Phase L3 yahan connect hota hai |
| W2 | Coil 3 | Ending point — Star mein short kiya jaata hai |
Star Connection — Starting Phase
Star connection mein motor reduced voltage par start hoti hai. Har coil ko lagbhag 230V milti hai (415V ki jagah) jisse starting current kam hoti hai. Ye starting phase hoti hai — motor ruk ke chalti hai lekin full power nahi milti abhi.
| Parameter | Star Mode (Starting) |
|---|---|
| Voltage per Coil | 230V (415/√3) |
| Starting Current | DOL ka 33% (1/3) |
| Starting Torque | Full ka 33% |
| Duration | 5–15 seconds (timer setting) |
Delta Connection — Running Phase
Jab motor speed pakad leti hai (lagbhag 80–90% full speed) to timer ke through automatically delta connection mein switch ho jaati hai. Delta mein motor ko full voltage milti hai aur wo full power par run karti hai. Yahan se motor apni rated kW par kaam karna shuru karti hai.
Control Circuit Wiring — 3 Contactors
Star delta starter mein teen contactors hote hain jinhe control circuit operate karta hai. Contactor NO NC contacts ka concept clear hona chahiye tab hi control circuit samajh aayegi. Inhe sahi interlock karna is wiring ka sabse critical part hai.
| Contactor | Naam | Kaam Kya Hai | Kab Active |
|---|---|---|---|
| KM | Main Contactor | Motor ko supply deta hai | Start se Stop tak hamesha ON |
| KS | Star Contactor | U2 V2 W2 ko short karta hai | Starting phase mein |
| KD | Delta Contactor | Delta connection banata hai | Running phase mein |
Starting Sequence — Step by Step
Timer counting (5–15 sec)
Timer expire → KS OFF
50–100ms delay → KD ON (Delta mode)
Motor full power par run
STOP → KM OFF + KD OFF
⚠ KS aur KD kabhi ek saath ON nahi hone chahiye — interlock lagana mandatory hai. Yeh sabse dangerous mistake hai.
Star vs Delta — Complete Comparison
| Parameter | Star Connection | Delta Connection |
|---|---|---|
| Voltage per Coil | 230V (415/√3) | 415V (Full) |
| Starting Current | DOL ka 33% | DOL ka 100% |
| Starting Torque | Full ka 33% | 100% |
| Power Output | Reduced | Full rated power |
| Phase | Starting only | Running phase |
| Use When | Motor start ho rahi ho | Motor speed pakad le |
5 Aam Galtiyan Jo Nahi Karni Chahiye
Troubleshooting Guide
Site par star delta fault aaya hai — yahan se diagnose karo. Agar motor circuit se related problems hain to circuit breaker trip ka guide aur cable heating ke 7 reasons bhi saath mein dekh lo.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor start nahi hoti | Control fuse blown, coil voltage nahi | Control supply check karo, fuse dekho |
| Star mein trip hoti hai | Timer bahut kam, overload setting galat | Timer badhao, relay check karo |
| Delta switch par jerk | Timer bahut kam, motor speed kam | Timer 2–3 sec aur badhao |
| Contactor chattering | Coil voltage kam, contactor dirty | Voltage check, contactor clean karo |
| Motor reverse chal rahi hai | Phase sequence galat | L1–L2 ya L2–L3 swap karo |
| Overload trip bar bar | Timer zyada kam, load zyada, relay setting galat | Timer badhao, load check karo, relay reset karo |
Safety Tips — Inhe Zaroor Follow Karo
| Safety Point | Kyon Zaroori Hai |
|---|---|
| LOTO mandatory — wiring se pehle supply isolate karo | Accidental energization se death ho sakti hai |
| Insulated tools — 1000V rated VDE certified | 415V ke liye unrated tools inadequate hain |
| Phase sequence verify karo — phase sequence meter se | Galat sequence se motor reverse aur damage |
| Interlock test — commissioning se pehle | KS+KD simultaneously = short circuit |
| No-load test pehle — motor pehle no-load par chalao | Wiring mistakes early detect hoti hain |
| Thermal monitoring — first run ke baad contactors ka temp check | Loose connections ya overload identify karo |
