Agar aap Gulf ka interview de rahe hain aur interviewer ne ek drawing kholi aur bola “Ye kya hai?” — to aapko har electrical symbols ka naam, standard aur use pata hona chahiye. Electrical symbols drawing ki zabaan hain — bina symbols ke na drawing padhoge, na banaaoge, na Gulf me kisi engineer ke saamne bol paaoge ki “Sir, main samajhta hoon ye diagram.” Me Mohammad Arif — 9+ saal ka experience hai India aur Qatar me. Qatar University, Sidra Hospital, Al Daayen Hospital — sab jagah electrical drawings padhi hain. Aaj aapko wo sab electrical symbols sikha raha hu jo REAL SITE pe kaam aate hain — textbook wali boring list nahi. Agar aapko electrical drawings padhna seekhna hai to wo post bhi zaroor padho.
- Electrical Symbols Kya Hote Hain?
- House Wiring Ke Basic Symbols
- Protection Device Symbols
- Industrial & Motor Symbols
- Single Line Diagram (SLD) Symbols
- Drawing Ke Types — Kab Kaunsi Use Hoti Hai
- Wire & Cable Symbols
- 5 Common Mistakes — Drawing Padhte Waqt
- Gulf Interview Me Symbols Ke Sawaal
- Symbols Yaad Kaise Rakhein
- Safety Symbols — PPE & Hazard
- Frequently Asked Questions
- Electrical Symbol — Complete Visual Guide
Electrical Symbols Kya Hote Hain — Simple Samjho
Electrical symbol ek standard graphical sign hai jo kisi bhi electrical component ko represent karta hai drawing me. Jaise Google Maps pe hospital ka symbol alag hota hai aur petrol pump ka alag — waise hi electrical drawing me MCB ka symbol alag hota hai aur motor ka alag. Ye electrical symbols internationally standardized hain — matlab India me jo MCB ka symbol hai, wohi Qatar me bhi hai, Dubai me bhi hai, Saudi me bhi hai. IEC 60617 aur BS EN 60617 ye standards define karte hain ki kaunsa component kaise dikhega drawing me.
Electrical symbols ke 4 bade fayde hain: drawing chhoti jagah me poora circuit dikha sakti hai bina har component ki photo lagaye, koi bhi trained electrician duniya me kahi bhi drawing padh sakta hai kyunki language barrier nahi hai, fault finding fast hoti hai kyunki drawing dekho circuit samjho fault isolate karo, aur Gulf interview me confidence milta hai jab aapko pata ho ki kaunsa symbol kya hai.
House Wiring Ke Basic Symbols — Ghar Ka Foundation
Pehle ghar ke electrical symbols samjho — kyunki yahi se electrician ka safar shuru hota hai. Chahe aap ITI student ho ya Gulf job aspirant — house wiring symbols aapka ABC hai. Agar house wiring ki buniyaad samajhni hai to What is House Wiring zaroor padho.
| Symbol Ka Naam | Kya Hai Ye | Kahan Milega | Yaad Rakhne Ka Trick |
|---|---|---|---|
| Single Pole Switch | Ek line break ke saath dot — ON/OFF ka basic symbol | Har room ka switch board | Ek MLA — ek constituency |
| Two-Way Switch | Dono taraf toggle hone wala switch | Staircase, corridor — dono jagah se ON/OFF | Do MLA ek seat ke liye |
| Socket Outlet (2-pin) | Semicircle ke andar 2 lines | Charger, lamp, small appliance | Chhota dukandaar — chhota kaam |
| Socket Outlet (3-pin) | Semicircle ke andar 3 lines (earth waali) | Fridge, washing machine, heavy load | 3-pin = safe — earth protection hai |
| Light Point (Bulb) | Cross mark ya circle ke andar X | Ceiling light, wall light | X marks the spot — yahan roshni |
| Fan Point | Circle ke andar F ya fan blade jaisa | Ceiling fan connection point | F = Fan, simple |
| Exhaust Fan | Circle ke andar arrow bahar jaata hua | Bathroom, kitchen | Arrow bahar = hawa bahar |
| Bell Push | Chhota triangle ya bell shape | Main door pe doorbell | Press karo, awaaz aaye |
| Regulator | Rectangle ke andar R ya variable resistor | Fan speed control | Speed control — haath se |
Protection Device Symbols — Electrical Bodyguard Team
Ye electrical symbols sabse zyada important hain — kyunki ye SAFETY devices represent karte hain. Inhe galat samjha to galat device lagaaoge — galat device lagaya to accident hoga. MCB vs MCCB vs RCBO ka farak detail me samajhna hai to wo post zaroor padho.
| Symbol Ka Naam | Drawing Me Kaisa Dikhta Hai | Kya Karta Hai | Analogy |
|---|---|---|---|
| MCB | Ek line break ke saath rectangle box — thermal+magnetic | Overload aur short circuit se protection | MLA — chhoti local problem (63A tak) |
| MCCB | MCB jaisa lekin bada box, adjustable trip | Heavy load protection — 100A se 2500A+ | CM — poore state ka zimmedaar |
| RCCB / RCD | Differential symbol — T shape ya special RCD mark | Earth leakage detection — shock se bachata hai | Vigilance Officer — leakage dhundhta hai |
| RCBO | MCB + RCCB combined symbol | Overload + short circuit + earth leakage — teeno ek me | One-Man Army — sab akela handle |
| Fuse | Rectangle ke andar S-curve ya simple line | Overcurrent pe pighal ke circuit todta hai | Purana watchman — ek baar gaya to wapas nahi |
| Isolator | Switch jaisa lekin bada gap — visible break | Maintenance ke liye circuit physically disconnect | Toll booth — ijazat ke bina nahi |
| Earth Symbol | 3 horizontal lines decreasing (pyramid jaisa) | Equipment ka earth connection | Safety ka anchor — bina iske khatre me |
| Surge Protector | Zigzag arrow ke saath ground symbol | Lightning aur voltage spike se protection | VIP security — sudden attack se bachata |
Industrial & Motor Symbols — Factory Ka Dimaag
Yahan se baat thodi serious hoti hai — industrial drawings me agar symbol galat padha to gadbad ho jayegi. Gulf ke MCC (Motor Control Center) rooms me in electrical symbols se roz kaam padta hai. Contactor NO NC contact ka concept clear karna zaroori hai.
| Symbol Ka Naam | Drawing Me Kaisa | Function | Gulf Site Context |
|---|---|---|---|
| 3-Phase Motor | Circle ke andar “M” ya “3~” | Industrial motor — pump, AHU, compressor | Gulf ke 90% motors ye hi hain |
| Single Phase Motor | Circle ke andar “M” ya “1~” | Chhota motor — domestic pump, exhaust | House wiring aur light duty |

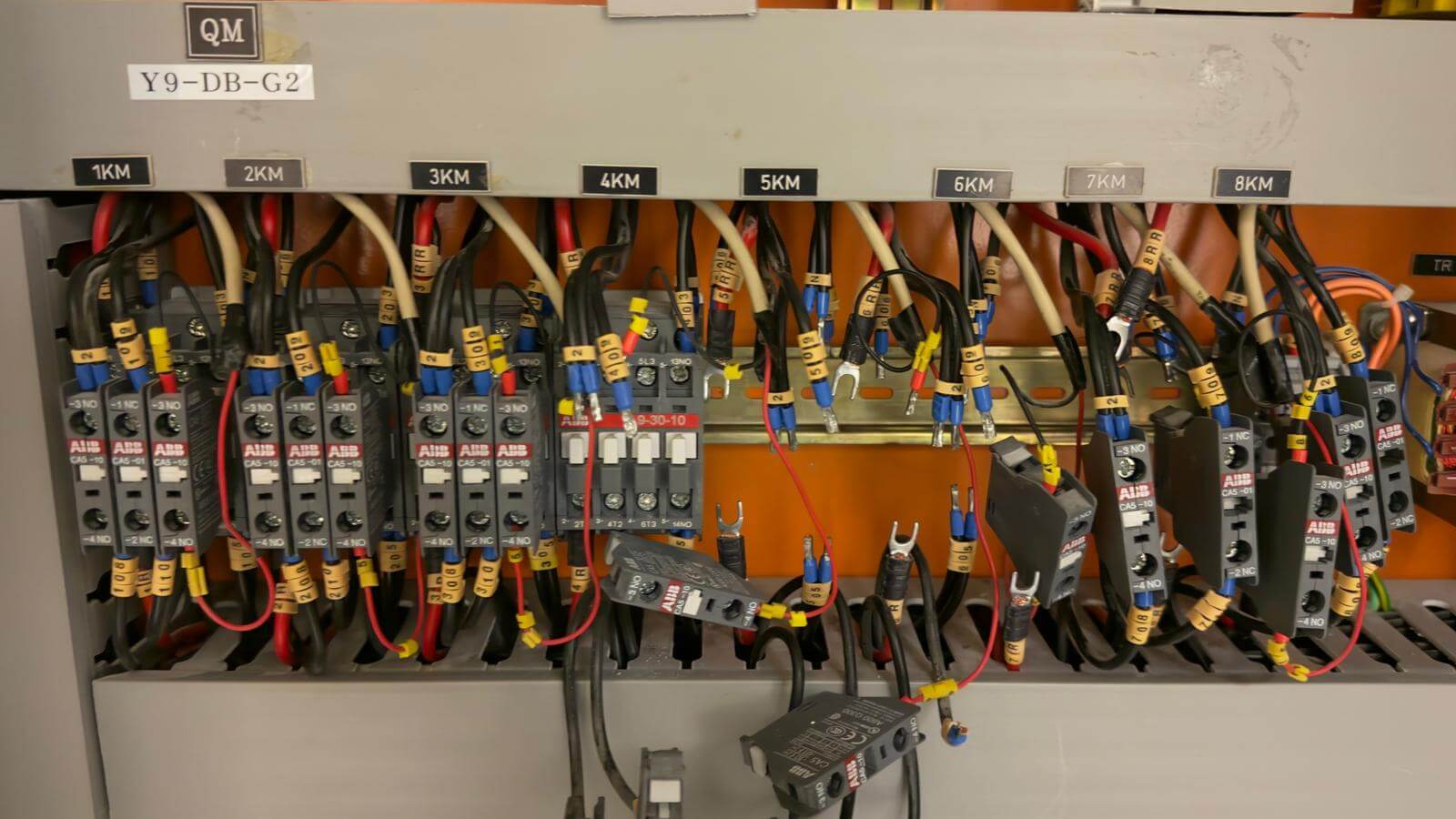

| Contactor (NO) | Dono lines ke beech gap — magnetic close | Motor ON/OFF remotely karta hai | Har MCC panel me — Star Delta me 3 contactor |
| Contactor (NC) | Dono lines connected — magnetic open | Normally closed — de-energize pe circuit close | Safety interlock circuits me |
| Overload Relay | Zigzag ya heater symbol ke saath contact | Motor overload detect karke trip karta hai | Motor ki bima policy |
| Transformer | Do coils ke beech core (zigzag parallel lines) | Voltage step-up ya step-down | Substation me 11kV se 415V |
| Timer (On-Delay) | Contact ke saath arrow aur T | Set time ke baad contact change | Star Delta me 5-10 sec timer |
| Push Button NO | Circle ke saath open contact | Press karo to circuit close — green button | Motor start karne ke liye |
| Push Button NC | Circle ke saath closed contact | Press karo to circuit open — red button | Motor stop ya emergency stop |
| E-Stop | Mushroom head push button — red circle | Turant sab band — safety ke liye | Har panel pe mandatory — Gulf rule |
| Indicator Lamp | Circle ke andar cross ya color mark | Status batata hai — R/Y/G light | Panel pe power ON, trip, fault |
| VFD | Rectangle ke andar “VFD” ya frequency wave | Motor ki speed control karta hai | AHU, chilled water pump — energy saving |
| Capacitor | Do parallel lines (ek straight, ek curved) | Power factor correction ya motor start | Industrial capacitor bank me |
Star Delta wiring me contactor, timer, aur overload relay ke symbols ka sahi use samajhna zaroori hai. Drawing ke symbols tab samajh me aayenge jab circuit ka logic clear ho. DOL starter wiring me bhi ye same symbols use hote hain.
Single Line Diagram (SLD) Symbols — Engineer Ki Zabaan
SLD (Single Line Diagram) ko samajhna Gulf me electrician se supervisor banne ka raasta hai. Ye ek simplified drawing hai jisme 3-phase system ko ek single line se dikhaya jaata hai. Supervisor level pe ye electrical symbols jaanna zaroori hai.
| SLD Symbol | Kya Represent Karta Hai | Kahan Milega |
|---|---|---|
| Bus Bar | Main power distribution bar (thick horizontal line) | MDB, SMDB ka backbone |
| Incomer | Main supply entry point (arrow pointing in) | Transformer se panel tak |
| Outgoing Feeder | Sub-panel ya load ko jaane wali supply (arrow out) | MDB se SMDB, SMDB se DB |
| CT (Current Transformer) | Circle ke andar donut shape | Metering ke liye — ammeter connect |
| PT (Potential Transformer) | Transformer symbol ke saath V mark | High voltage metering ke liye |
| Energy Meter | Circle ke andar kWh | Billing aur monitoring ke liye |
| ATS | Two sources ke beech changeover symbol | Main supply fail pe generator switch |
| Generator | Circle ke andar “G” | Backup power source |
| Capacitor Bank | Multiple capacitor symbols parallel me | Power factor improvement ke liye |
ATS panel ke symbols aur wiring samajhne ke liye Cummins ATS Panel Wiring Guide padho — real industrial context me symbols ka use dikhega.
Drawing Ke Types — Kab Kaunsi Use Hoti Hai
Electrical symbols samajhne ke baad ye jaanna zaroori hai ki ye symbols KAHAN use hote hain. Gulf sites pe 4 main types ki drawings hoti hain.
1. Schematic Diagram (Circuit Diagram): Ye circuit ka complete logic dikhata hai — har wire, har component, har connection. Control wiring drawings isi type ki hoti hain. Contactor, timer, relay ke symbols yahan detail me milte hain.
2. Single Line Diagram (SLD): Power distribution ka simplified view — MDB se DB tak ka raasta. Gulf ke har project ka SLD as-built drawing me hota hai. Supervisors aur engineers zyada SLD use karte hain.
3. Wiring Diagram: Ye physical connection dikhata hai — kaunsa wire kaunse terminal pe jayega. Electricians ke liye ye sabse kaam ki drawing hai. Panel wiring karte waqt ye drawing use hoti hai.
4. Layout/Floor Plan: Building ke floor plan pe symbols mark hote hain — kahan light hai, kahan socket hai, kahan DB hai. House wiring basics me ye drawing use hoti hai. BOQ preparation bhi inhi drawings se hoti hai.
Wire & Cable Symbols — Jo Log Ignore Karte Hain
Electrical symbols sirf devices ke nahi hote — wires aur cables ke bhi hote hain. Ye chhoti cheez drawing padhne me bada farak dalti hai.
| Symbol | Kya Matlab Hai | Example |
|---|---|---|
| Continuous Line | Ek wire ya cable | Single wire run |
| Dashed Line | Hidden ya concealed wiring | Wall ke andar ki wiring |
| 3 Slashes on Line | 3-phase circuit | Motor feeder cable |
| Dot at Junction | Wires physically connected hain | Junction box me splice |
| Arc/Bridge at Crossing | Wires cross kar rahe hain BUT connected NAHI | Drawing me overlap — circuit alag |
| Earth Symbol on Cable | Cable ka earth conductor | 3C+E cable (3 core + earth) |
| FP (on cable marking) | Fire Performance Cable | Emergency lighting — CBS se connected |
FP Cable ka importance CBS (Central Battery System) me samajhna hai to Central Battery System Guide padho. Cable heating despite correct size ka masla bhi symbols se related hai — agar drawing me cable size sahi se marked nahi hai to derating miss ho jaata hai.
5 Common Mistakes — Drawing Padhte Waqt
Ye galtiyan REAL SITE pe hoti hain — me khud dekh chuka hu. Har galti me time, paisa aur kabhi kabhi safety bhi daav pe lagti hai.
Galti 1: NO aur NC Contacts Interchange Karna. Drawing me NO (Normally Open) aur NC (Normally Closed) ka symbol milta julta dikhta hai — lekin kaam bilkul ulta hai. Ek electrician ne emergency stop ka NO contact lagaya NC ki jagah — result? Emergency stop dabaya to machine CHALU ho gayi band hone ki jagah. Hamesha contact type drawing se verify karo.
Galti 2: 3-Phase aur Single Phase Ka Confusion. SLD me slash marks count karo — 3 slashes = 3-phase, 1 slash ya koi slash nahi = single phase. Ek junior ne 3-phase motor ko single phase supply de di — motor ne 2 din kaam kiya phir winding jal gayi.
Galti 3: Earth Symbol Ko Neutral Samajhna. Earth aur neutral dono “return path” hain — lekin kaam alag hai. Gulf me neutral-earth mix karna = RCCB trip = headache. Ye samajhna hai to Circuit Breaker Trip Without Overload padho.
Galti 4: Cable Size Drawing Se Nahi Padhna. Drawing pe cable specification likhi hoti hai — “4C x 6mm² Cu/PVC/SWA”. 4C = 4 core, 6mm² = conductor size, Cu = copper, PVC = insulation, SWA = Steel Wire Armoured. Bahut saare electricians ye specification ignore karte hain.
Galti 5: Drawing Ka Revision Check Nahi Karna. Drawing pe “Rev” number hota hai. Hamesha LATEST revision se kaam karo. Purani drawing se kaam karna matlab galat jagah pe galat cheez lagana. Gulf me rework ki penalty QAR 5,000-20,000 ho sakti hai.
Gulf Interview Me Electrical Symbols Ke Sawaal
Ye top 5 sawaal hain jo Gulf interview me electrical symbols ke context me poochhe jaate hain:
Q1: “Ye drawing padho aur batao is circuit me kya hai.” — Interviewer ek simple control circuit ya SLD dikhayega. Aapko symbols identify karke circuit explain karna hai. Ye practical test hai.
Q2: “MCB aur MCCB ka symbol drawing me kaise alag hai?” — MCB chhota box hai fixed trip ke saath, MCCB bada box hai adjustable settings ke saath. Symbol me trip adjustment mark hona MCCB ki pehchaan hai.
Q3: “NO aur NC contact me kya farak hai?” — NO = normally circuit open hai, button dabao to close. NC = normally circuit close hai, button dabao to open. Safety circuits me NC use hota hai — wire tootne pe bhi circuit break hoga = safer.
Q4: “Star Delta diagram draw karo.” — 3 contactors (Main, Star, Delta), 1 timer, 1 overload relay — inke symbols sahi jagah draw karne aane chahiye. Star Delta Wiring Guide pe diagram detail me hai.
Q5: “SLD me ATS kya hai?” — ATS = Automatic Transfer Switch. Drawing me do sources (utility + generator) ke beech changeover symbol hota hai.
Symbols Yaad Kaise Rakhein — Practical Tarika
50+ electrical symbols ratta maarne ki zaroorat nahi. Me aapko apna tarika batata hu jo Qatar University me kaam karte waqt seekha:
Tarika 1: Category Wise Yaad Karo. Pehle protection devices (MCB, MCCB, RCCB, fuse), phir switches (SP, TP, isolator), phir motors aur loads, phir wiring symbols. Category wise yaad karne se brain me “folder” ban jaata hai.
Tarika 2: Analogy Use Karo. MCB = MLA, MCCB = CM, RCCB = Vigilance Officer — ye analogies lifetime yaad rahengi. Jab bhi naya symbol mile usse kisi cheez se compare karo jo daily life me dikhta hai.
Tarika 3: Drawing Practice Karo. Ek simple circuit draw karo — light circuit, motor circuit, star delta circuit. Drawing karne se haath ko bhi yaad hota hai aur dimaag ko bhi.
Tarika 4: Real Panel Se Match Karo. Agar site pe kaam karte ho — panel khol ke dekho aur drawing ke symbols se match karo. “Ye MCB hai — drawing me aise dikhta hai.” Ye practical matching theory se 100 guna better hai.
Safety Symbols — PPE Aur Hazard Se Related
Electrical drawings pe sirf circuit symbols nahi hote — safety symbols bhi hote hain. Gulf sites pe ye mandatory hain. Safety PPE Standards ka complete guide padho.
| Safety Symbol | Color | Matlab |
|---|---|---|
| Lightning Bolt Triangle | Yellow/Black | Electrical Hazard — High Voltage Warning |
| Skull & Crossbones | Yellow/Black | Danger of Death — Electrocution Risk |
| Lock & Tag Symbol | Red/White | LOTO Required — Isolate Before Work |
| Hard Hat Symbol | Blue/White | Safety Helmet Mandatory |
| Gloves Symbol | Blue/White | Insulated Gloves Required |
| Arc Flash Boundary | Orange/Red | Arc Flash Risk — PPE Category Check Required |
Current kyu lagti hai ye samajhne ke liye wo post padho — safety symbols tab samajh me aayenge jab aapko pata ho ki khatarnaak kya hai. VCB ka PPM me bhi ye safety symbols bahut important hain — 3.3kV pe kaam karte waqt.
